Enhancing Alternative Building Technology foot print.
Block
blocks

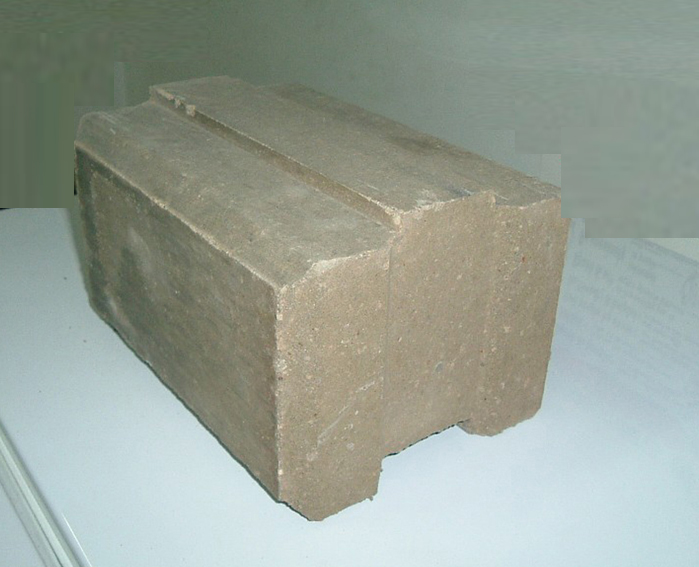

HYDRAFORM Hydraform HF220 block is the standard Hydraform block and is suitable for external 9″ thick walls.
HF220 is the standard Hydraform block has dimensions +- 230 mm (L) X 220mm (W) X 115 mm (H), has beveled / champhered edges. Block length can be made between 120 to 240mm and depends on material quantity.
Block Technical Details
- Raw material for making block :
- Soil-Sand-Cement
- Fly Ash-Sand-Cement
- Other locally available materials like rice husk ash ,Marble Powder etc. can be added.
- No burning – Only water cured.
- High Compressive Strength – Low water absorption.
- Interlocking Construction-Dry stack or minimal mortar.
- Vertical & Horizontal Reinforcement/Conduit possible.
HF 220
220 mm Block : (9-11kg)
- Width : 220 mm
- Height : 115 mm
- Length : 120 mm- 240 mm
HF 150
150 mm Block : (6-8 kg)
- Width : 150 mm
- Height : 115 mm
- Length : 120 mm- 240 mm
HF 220 Conduit
Conduit Block : (9-11 kg)
- Width : 220 mm
- Height : 115 mm
- Length : 120 mm- 240 mm

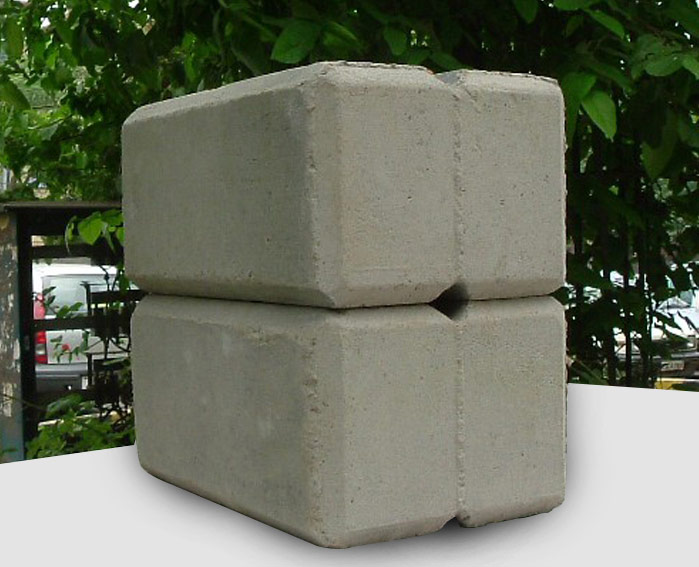

HF TWIN BRICK
Twin Bricks (6-7kg)
- Width : 115/150 mm
- Height : 150/115 mm
- Length : 230 mm

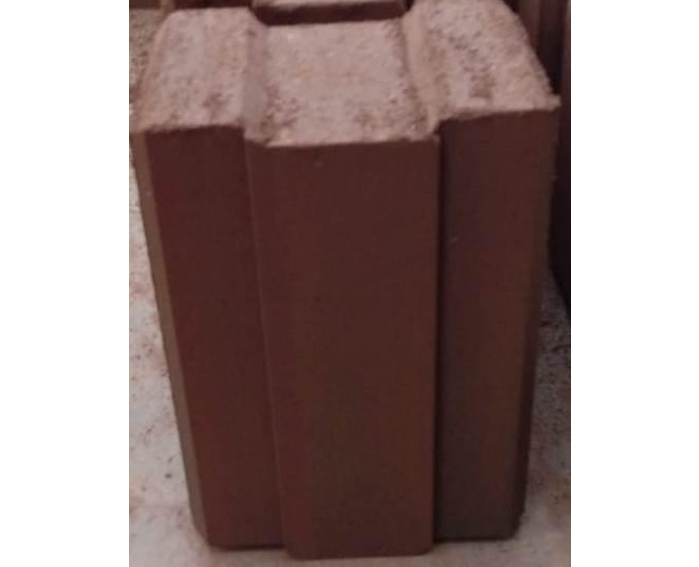

HFP 115/220
115/220 mm Plain Block : (9-11 kg)
- Width : 115 mm
- Height : 220 mm
- Length : 120 mm- 240 mm
HF 100 mm
100 mm Block : (3-4 kg)
- Width : 100 mm
- Height : 115 mm
- Length : 120 mm-240 mm

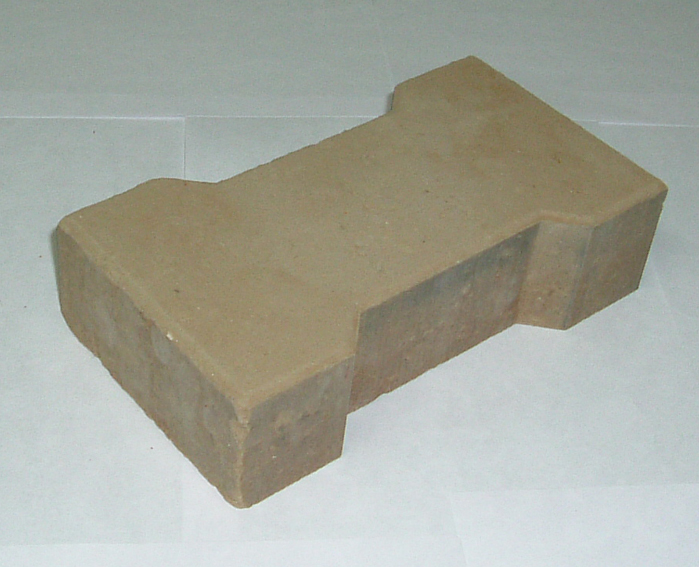

HF Paver
Paver : (5-6 kg)
- Width : 115 mm
- Height : 100 mm
- Length : 220 mm
HF 300 mm Length Block
300 mm Length Block : (16-17 kg)
- Width : 200/220 mm
- Height : 150 mm
- Length : 150/300 mm

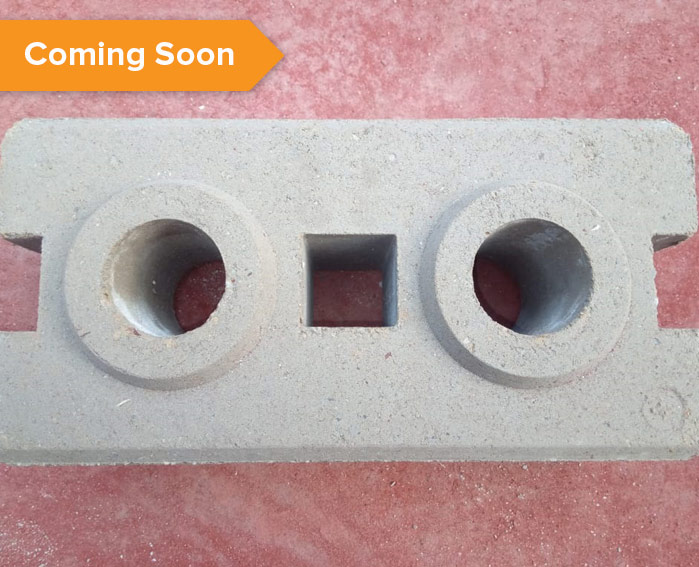

HF Hollow Interlocking Block
Weight: 6 to 7 Kg
- Width : 150 mm
- Height : 300 mm
- Length : 100 mm
